Industry : |
| |
Pharmaceutical |
| | |
Product : |
| |
5% Phthalocyanine blue pigment dispersion |
| | |
Test Objective : |
| |
Reduce 99% of particles to below 0.5um |
| | |
Processor : |
| |
M-110Y with cooling chamber     (Microfluidizer High Shear Processor Àåºñº¸±â) |
| | |
Chambers : |
| |
- Interaction Chamber (downstream) H30Z (200um)
- Auxiliary Processing Module (upstream) G10Z (87um) |
| | |
Number of passes : |
| |
Continuous processing for 40 passes |
| | |
Shear per pass : |
| |
5,600,000 sec -1 |
| | |
Process pressure : |
| |
21,000 psi |
| | |

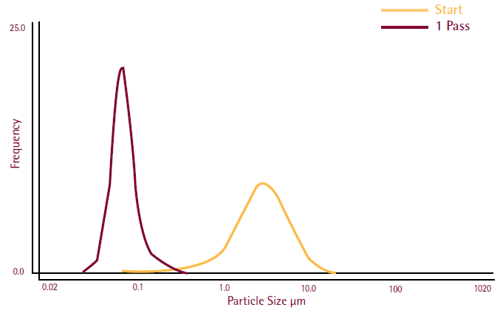

Particle Size : |
| |
- Premix : 4.109 um mean particle size (D99 = 15.733um)
- 40 Passes : 0.142 um mean particle size [D99 = 0.43 um) |
| | |
Summary of results : |
| |
Reduced 99% of particles to 0.43 um in 40 passes of continuous processing on an M-110Y Microfluidizer materials processor.
