Real-time online monitoring and control of glucose and lactate

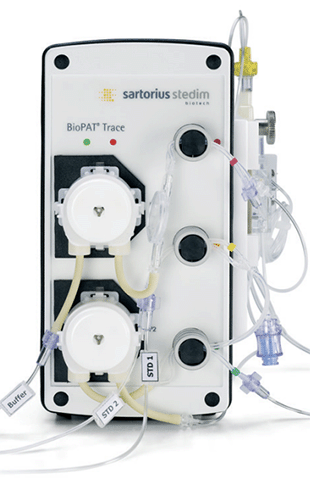

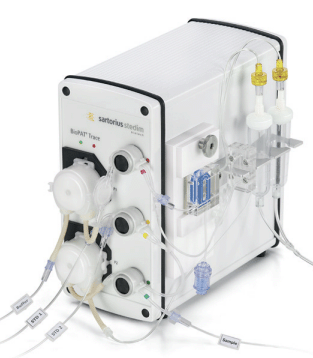

BioPAT Trace & BioPAT Multi Trace
BioPAT Trace & BioPAT Multi Trace
Cat. No.
BioPAT Trace °ßÀû¿äû
BioPAT Multi Trace °ßÀû¿äû

BioPAT Trace glucose & lactate ºÐ¼®±â ºê·Î¼Å

¼¼Æ÷¹è¾ç µµÁß ¹è¾ç¾× ³»ÀÇ glucose ¿Í lactate ÀÇ ³óµµ¸¦ ÃøÁ¤ÇÏ´Â Àåºñ
glucose ¿Í lactate ÀÇ ³óµµ¸¦ ½Ç½Ã°£À¸·Î monitoring
glucose ¸¦ feeding ÇÏ´Â ½Ã½ºÅÛ°ú ¿¬µ¿ÇÏ¸é ¹è¾ç¾×³»ÀÇ glucose ³óµµ¸¦ Ç×»ó ÀÏÁ¤ÇÏ°Ô À¯Áö °¡´É
glucose oxidase ¿Í lactate oxidase °¡ ÄÚÆÃµÈ platinum electrode ¿¡¼­ oxidase °¡ glucose ¿Í lactate ¸¦ ºÐÇØÇÏ¸é »ý¼ºµÈ electron ¿¡ ÀÇÇØ current ÀÇ º¯È­°¡ »ý±â°í À̸¦ ÃøÁ¤ÇÏ¿© ³óµµ¸¦ °è»êÇÏ°Ô µÈ´Ù.
measurement cell ¿¡¼­ glucose ¿Í lactate ÀÇ ³óµµ ÃøÁ¤
10 - 12 kDa ÀÌÇÏ Å©±âÀÇ ºÐÀÚ¸¦ Åõ¼®ÇÒ ¼ö ÀÖ´Â dialysis probe ¸¦ ÀÌ¿ëÇÏ¿© ¹è¾ç¾×¿¡ ÀÖ´Â glucose ¿Í lactate ¸¦ Æ÷ÇÔÇÑ ¹°ÁúÀ» separtion ÇÏ°í À̸¦ transport buffer ¸¦ ÀÌ¿ëÇÏ¿© measurement cell ·Î À̼Û
BioPAT Trace : 1°³ÀÇ ¹è¾ç±â¿Í ¿¬°áÇÏ¿© ºÐ¼®
BioPAT Multi Trace : ÃÖ´ë 4ÀÇ ¹è¾ç±â¿Í ¿¬°áÇÏ¿© ºÐ¼®
°ÅÀÇ ¸ðµç ÇüÅÂÀÇ Bioreactor ¿Í ¿¬°áÇÏ¿© »ç¿ë°¡´ÉÇÕ´Ï´Ù
1 ½Ã°£¿¡ ¾à 30¹ø glucose ¿Í lactate ³óµµ ÃøÁ¤ °¡´É
ÃøÁ¤ ¹üÀ§
- glucose : 1 - 40 g/L (56 uM - 0.223 mM)
- lactate : 0.5 - 10 g/L (56 uM - 0.102 mM)
- low glucose : 0.01 - 10 g/L (0.56 uM - 0.056 mM)
- low lactate : 0.05 - 2.5 g/L (0.56 uM - 0.026 mM)
2°³ÀÇ calibration buffer ¸¦ ÀÌ¿ëÇÑ auto calibration
Æò±Õ ÃøÁ¤ ÆíÂ÷
- glucose : 1.5% À̳» (1 - 20 g/L glucose)
- lactate : 1.5% À̳» (1 - 10 g/L lactate)
¹è¾ç¾× pH range : 4.8 - 9.2
glucose / lactate enzymatic electrode ÀÇ »ç¿ë ÁÖ±â : 30ÀÏ ¶Ç´Â 5,000 ºÐ¼® ÈÄ ±³Ã¼
´Ù¾çÇÑ Å©±âÀÇ dialysis probe : 132mm, 165mm, 212mm, 232mm, 332mm, 362mm, 432mm (±æÀÌ)
dialysis membrane ÀçÁú : cellulose acetate, 12 kDa MWCO (molecular weight cut-off)
product contact part ÀçÁú : 1.4404 AISI - 316L stainless steel - mechanically polished

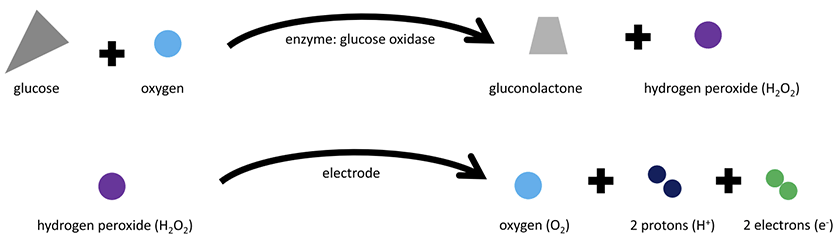

BioPAT¢ç Trace glucos & lactate ³óµµ ÃøÁ¤ ¿ø¸®
ÀåºñÀÇ measurement cell ¿¡ ÀÖ´Â platinum electrode ¿¡´Â glucose oxidase ¿Í lactate oxidase °¡ coating µÇ¾î ÀÖÀ¸¸ç ÀÌ oxidase °¡ glucose ¿Í lactate ¸¦ ºÐÇØÇÏ°Ô µÇ¸é »ý¼ºµÇ´Â electron ¿¡ ÀÇÇØ current °¡ »ý¼ºµÇ´Âµ¥ ÀÌ Àü·ùÀÇ ¾çÀº glucose ¿Í lactate ÀÇ ¾ç¿¡ ºñ·ÊÇÑ´Ù.

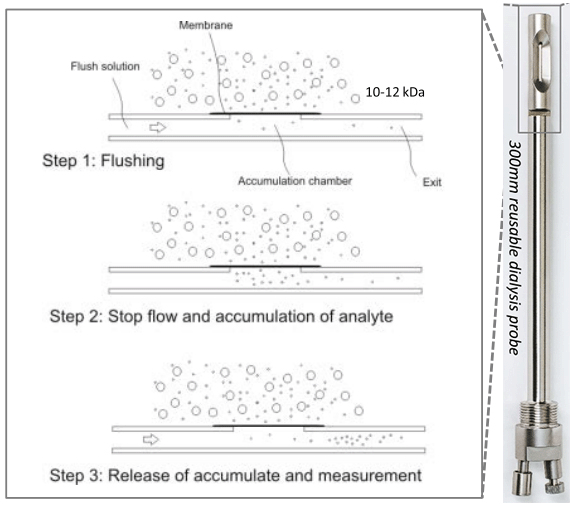

Dialysis probe ¸¦ ÀÌ¿ëÇÑ glucos & lactate ÀÇ dialysis
dialysis probe ¿¡ ÀÖ´Â membrane Àº ¹è¾ç¾×¿¡ ÀÖ´Â 10 - 12 kD ÀÌÇÏÀÇ ¹°ÁúÀ» dialysis ½ÃÅ°°Ô µÇ°í pump ÀÛ¿ë¿¡ ÀÇÇØ glucose & lactate ¸¦ Æ÷ÇÔÇÑ Åõ¼®¾×µéÀº measurement cell ·Î À̼ÛÇÏ°Ô µÈ´Ù.

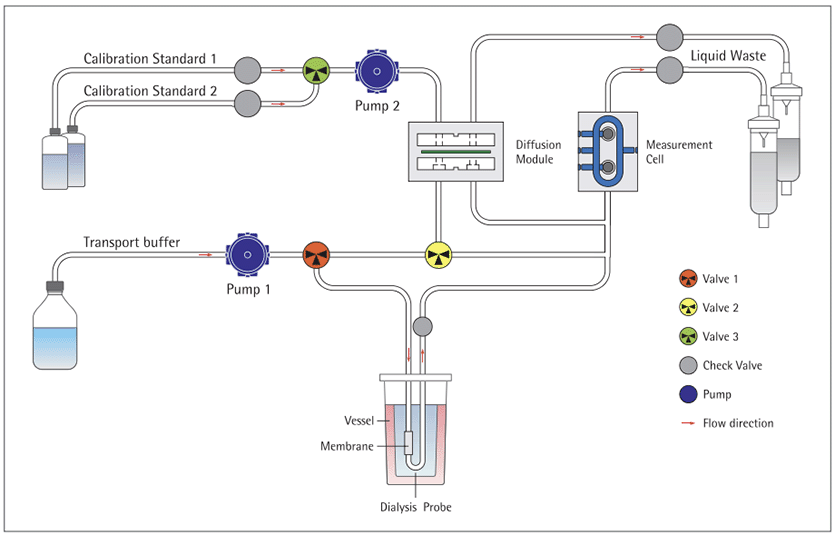

BioPAT¢ç Trace glucos & lactate ºÐ¼®±â ±¸¼ºµµ
¨ç ¹è¾ç¾×³» ÀÛÀº ¹°ÁúÀ» dialysis ½ÃÅ°´Â dialysis probe,   ¨èdialysis µÈ ¹°ÁúÀ» measurement cell ·Î À̼۽ÃÅ°´Â µ¥ »ç¿ëµÇ´Â transport buffer,   ¨é ÀÚµ¿À¸·Î calibration ÇÏ´Â 2°³ÀÇ calibration buffer,   ¨ê measurement cell µîÀ¸·Î ±¸¼ºµË´Ï´Ù.

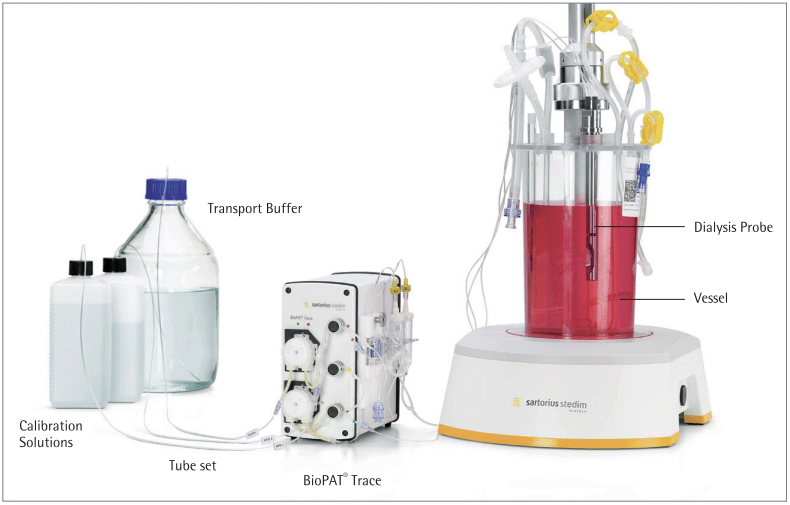

BioPAT¢ç Trace ´Â °ÅÀÇ ¸ðµç ÇüÅÂÀÇ Bioreactor ¿Í ¿¬°áÇÏ¿© »ç¿ë°¡´ÉÇÕ´Ï´Ù.



ÀÏȸ¿ë bioreactor ¿¡ ¿¬°áÇÏ¿© »ç¿ëÁßÀÎ BioPAT¢ç Trace



Specifications
BioPAT Trace and BioPAT Multi Trace
Measuring principle Enzymatic amperometric
Linear measuring range Glucose 1 to 40 g/L (56 uM to 0.223 mM)
Lactate 0.5 to 10 g/L (56 uM to 0.102 mM)
low Glucose 0.01 to 10 g/L (0.56 uM to 0.056 mM)
low Lactate 0.05 to 2.5 g/L (0.56 uM to 0.026 mM)
Measurement deviation Glucose | Lactate <1.5% 1 to 20g/L | <1.5% 1 to 10g/L F.S.
Low Glucose | Lactate <2.5% 0.5 to 1g/L | <2.5% 1 to 0.5g/L F.S.
pH range of the medium 4.8 - 9.2
Service life of the enzymatic electrode Glucose | Lactate 30 days or 5,000 analyses
Operating temperature 15¡É to 35¡É
Operating humidity 10 to 90%
System storage conditions 5¡É to 60¡É,     5% to 75% RH
Data frequency, Dialysis BioPAT Trace : Up to 30 measurements / hour,
BioPAT Multi Trace : Up to 2 measurements / hour
Transport buffer consumption 1.5 L/day to 2.0 L/day
Calibration solution consumption 5 mL/day to 145 mL/day
Serial output 9-pin female connector to external pump
Weight BioPAT Trace : 1.8 kg,     BioPAT Multi : 2.0 kg
Dimensions (W x H x D) 120 x 170 x 200 mm
BioPAT Trace Dialysis Probe
Mechanical port connection Diameter : 12 mm thread : steel conduit, PG 13.5
Insertion depth | Univessel¢ç volume 132 mm | 0.5L BPT0014
165 mm BPT0015
212 mm | 1/2 L BPT0016
232 mm | 2 L BPT0017
332 mm | 5 L BPT0018
362 mm | 5 L BPT0019
432 mm | 10 L BPT0020
Port adapter | insert depth reductio 19/12 mm | 49 mm BB-8848630
25/12 mm | 52 mm BB-34165225
Product contact materials 1.4404 AISI - 316L stainless steel - Mechanically polished
Construction material Dialysis membrane : Cellulose acetate, approx. 12 kDa MWCO
Pressure range : 0.8 bar to 3.4 bar | 11.6 psi to 49.91 psi absolute pressure
Port gasket O-ring, 11.00 mm x 3.00 mm EPDM (FDA | USP Class VI)
Vessel preparation requirements install membrane - fill buffer - autoclave | steam sterilization
