 Industry : |
| |
Chemical |
| | |
| Product : |
| |
Fatty acid ester emulsion for mold release |
| | |
| Test Objective : |
| |
Achieve D50 0.37um, D99 0.83um in one pass |
| | |
| Processor : |
| |
M-110Y (Microfluidizer High Shear Processor 장비보기) |
| | |
| Chambers : |
| |
- Interaction Chamber (upstream) F20Y
- Auxiliary Processing Module (downstream) H30Z |
| | |
| Number of passes : |
| |
1 - 3
| Process Pressure |
5,000 psi |
10,000 psi |
15,000 psi |
18,000 psi |
| Shear, second-1 (per pass) |
3,410,000 psi |
4,822,000 psi |
5,646,000 psi |
6,185,000 psi |

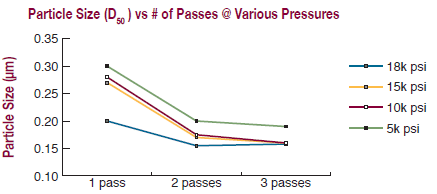

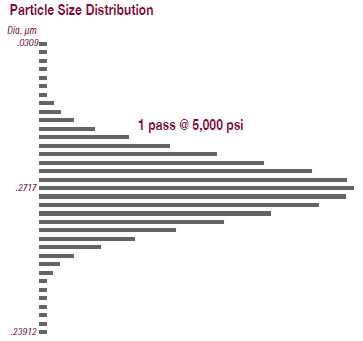

| Particle Size : 1 pass |
0.3082 um |
0.2337 um |
0.2222 um |
0.2003 um |
| Particle Size : 2 passes |
0.2049 um |
0.1776 um |
0.1751 um |
0.1590 um |
| Particle Size : 3 passes |
0.1960 um |
0.1601 um |
0.1597 um |
0.1544 um |
|
| | |
| Summary of results : |
| |

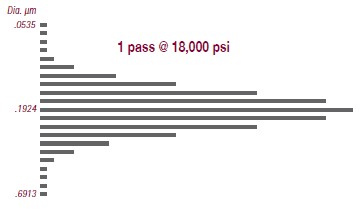

One pass at 18,000 psi produced a particle size of D50 0.20um, D99 0.36um.
