| ISP-3600 Flow-Through Configuration Schematic |
|
 |
| ISP-3600 Generator |
1. 3,600 W ultrasonic generator with an automatic frequency correction
processor and 20 - 100% amplitude controller
2. Wired remote ON/OFF switch
3. Ultrasound cable
4. Grounding cable
5. Manual |
| SWCT-3600 |
1. Water-cooled 20 kHz piezoelectric transducer
2. Transducer support arm with nut
3. Two quick disconnect to 3/8-inch hose ID adapters for transducer cooling liquid |
| HBH |

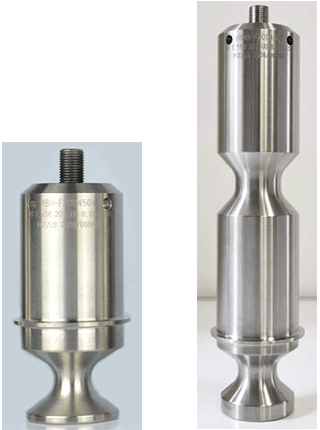

HBH-type ultrasonic Barbell Horn™, output tip diameter - 45 mm |
| Flow-Through Reactor Chamber |
1. Flow-through reactor chamber with 1-inch inlet and outlet sanitary flanged connections
2. Reactor chamber lid
3. 1-inch sanitary to 1-inch hose ID adapter for main liquid line outlet
4. 1-inch sanitary to 1-inch hose ID adapter for main liquid line inlet
5. Two 1-inch sanitary clamps
6. Two gaskets for 1-inch sanitary fittings
7. Two O-rings for reactor chamber
8. Reactor chamber support arm with nut |
| Spanner Wrenches |
Spanner wrench set for horn-to-transducer assembling/disassembling |
| Weight |
Approximately 20.4 kg |
| AC Power Requirement |
220-240V 50/60 Hz @ 20 Amps |
| Operating Environment |
1. Temperature: +5℃ to +38℃
2. Altitude: 15,000 ft (4572 m)
3. Air Particulates: Keep the equipment dry. Minimize exposure to moisture,
dust,
dirt, smoke and mold.
4. Humidity: 5% to 95% non-condensing @ +5℃ to +30℃ |
| Storage guidelines |
1. Temperature: -20℃ to +70℃
2. Altitude: 40,000 ft. (12,190 m)
3. Air Particulates: Keep the equipment dry. Minimize exposure to moisture,
dust,
dirt, smoke and mold.
4. Humidity: 5% to 95% non-condensing @ 0℃ to +30℃ |
| Regulation |
1. UL: 1012:2010
2. CSA: C22.2/61010-1-12
3. IEC/EN: 61010-1:2010 |
| FCC |
The generator complies with the following Federal Communications Commission regulations.
** The limits for FCC measurement procedure MP-5, 'Methods of Measurement of Radio Noise Emissions from
Equipment', pursuant to FCC Title 47 Part 18 for Ultrasonic Equipment. |
| CE Marking |
This mark on your equipment certifies that it meets the requirements of the EU (European Union) concerning
interference causing equipment regulations. CE stands for Conformite Europeene (European Conformity). The
equipment complies with the following CE requirements.
** The EMC Directive 2004/108/EC for Heavy Industrial --- EN 61000-6-4: 2001 |
|
