| 영진코퍼레이션 종합카다로그 |
|
|
|
|
| Cat. No. |
| |
| AGI HOMOMIXER Model 2M-2 |
견적요청 |
| |
| AGI HOMOMIXER Model 2M-5 |
견적요청 |
| |
| Homogenization 과 Agitation 을 동시에 할 수 있는 분산.유화 장비로서 고점도 물질의 mixing 과 emulsification 에 많이 사용하는 장비 |
|
 |
진공에서 사용할 수 있는 실험용 Vacuum Mixer Emulsifier |
|
| |
최대 2 Liter (Model 2M-2), 5 Liter (Model 2M-5) 용량 처리 |
|
| |
제약, 화장품 관련 분야 연구에 필요한 기능들이 포함되어 있는 homo mixer |
|
| |
진공하에서 사용할 수 있는 emulsifying equipment |
|
| |
진공펌프 내장형 |
|
| |
간단히 vessel 과 mixing section (homo mixer 와 paddle mixer) 를 교체하면 2 Liter 용 또는 5 Liter 용으로 전환하여 사용 가능 |
|
| |
Vessel 재질:강화유리 (다양한 온도,진공 조건 만족) |
|
| |
Paddle mixer 측면 scrapers 장착 |
|
| |
Option
- Data logging software
- Batch to mass. Production conversion software
- T.K. EC Sensor displays emulsification conditions |
|
| |
Cosmetic : basic cosmetic (creams, milky lotion, lotions), foundations, conditioners, face wash foams, etc
Pharmaceutical : ointments, creams, syrups, suspensions
Food : dressings, mayonnaise, jams |
|
|

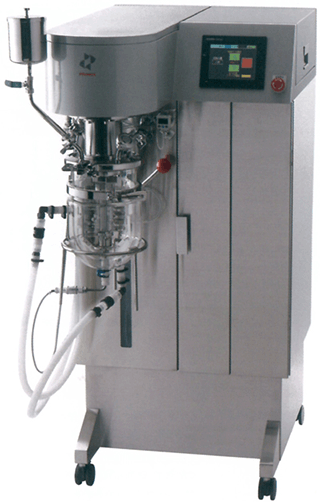

AGI HOMOMIXER Vacuum Emulsifier, Model 2M-2, 2M-5 |
|
| Model 2M-2 |
|
| Input power for main body |
|
AC 100 V 50/60 Hz 1 phase
w / cable 3 m
plug : grounded 2P waterproof rubber cord connector plugs.
Come with adapter (grounded 15 A adapter) |
|
| Mixing Section |
|
T.K. Homo Mixer Mark II Model 2.5
motor : 0.4 kW
mixer head rpm : 1,000 - 12,000
construction material : wetted parts - SUS304, turbine bearing : PTFE |
|
| Controls |
|
touch-sensitive liquid crystal display (LCD)
display : operating time, abnormality operation
controls : run/stop switch, vessel lift up/down, vacuum pump, constant temperature water bath
Set up : rpm, timer |
|
| Vessel |
|
Full capacity : 4 Liters,
working capacity : 2 Liters,
Construction material : hard glass with jacket
Jacket inlet/outlet with platinum resistance thermometer |
|
| Recorders |
|
rpm, temperature, ammeter |
|
| Built-in unit |
|
constant temperature water bath, vacuum pump |
|
| Weight |
|
Approx. 250 kg. |
|
| Model 2M-5 |
|
| Input power for main body |
|
AC 100 V 50/60 Hz 1 phase
w / cable 3 m
plug : grounded 2P waterproof rubber cord connector plugs.
Come with adapter (grounded 15 A adapter) |
|
| Mixing Section |
|
T.K. Paddle Mixer
motor : 0.4 kW
mixer head rpm : 15 - 120
construction material : wetted parts- SUS304, turbine bearing : PTFE |
|
| Controls |
|
touch-sensitive liquid crystal display (LCD)
display : operating time, abnormality operation
controls : run/stop switch, vessel lift up/down, vacuum pump, constant temperature water bath
Set up : rpm, timer |
|
| Vessel |
|
Full capacity : 7 Liters,
working capacity : 5 Liters,
Construction material : hard glass with jacket
Jacket inlet/outlet with platinum resistance thermometer |
|
| Recorders |
|
rpm, temperature, ammeter |
|
| Built-in unit |
|
constant temperature water bath, vacuum pump |
|
| Weight |
|
Approx. 250 kg. |
|
|
